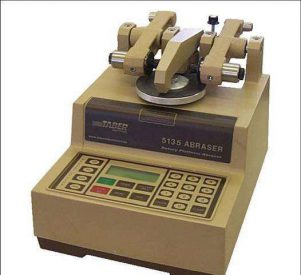

Fabric Abrasion Tester is Suitable for woven, knitted, woven, decorative materials, coated fabrics and other apparent abrasion resistance testing and pilling performance test.
Fabric Abrasion Tester Method of operation
1、Sample preparation
In the standard environment, tiled, without stretched state, place it for a period of time according to different standards. As24 h(G B /T 4 80 2 .2 一 19 97)，16h(EN ISO 12947-4:1998)
2、samples Selection
Cut a sample from different parts of the entire width of fabric and, the sample to be representative. If it is fancy fabric sample, which should include all the different organizations and cloth made from color rendering.
3、Remove the load and the upload the shaft from the test machine
4、Remove the top plate and the test fixture
5、Sample Device
Loosen the retaining ring on the test fixture, scored tablet sample, the sample is placed in a test fixture base. When the test fabric is not more than 500 g / m2, put the polyester foam pad between a sample and the sample holder with the metal block body; greater than 500 g / m2, or when the composite fabric, foam pad is not required. Each specimen holder on the sample should be the same tension.
6、Device to Sheep blankets and cloth friction
Place the Felt and abrasive on Grinding station, put heavy Tuo shi on abrasive, then set the pressure ring; tighten the nut so that the pressure ring is fixed to the abrasive grinding stage
7、add pressure on the abrasive placed on the grinding platform.
8、The mounted sample test fixture face down and placed on the base fixture, test fixture adjustment circular recess aligned with a load of the shaft, the shaft is inserted so that the load test fixture circular inner recess
9、Accordance with the standards for the set times, the start switch to start the test, automatically shut down after the number reaches the set
10、Remove the sample, in contrast to the standard sample according to the rating box
