Fabric Weight Calculation in GSM (Woven Fabric)
GSM calculation of fabric:
Fabric is the basic raw material to produce any particular garments . Before going to bulk production , it is quite essential to know and test the GSM of the supplied fabric by the supplier. This GSM can directly be got through GSM cutter .
What is GSM?
Fabric GSM means the weight of fabric in grams in per square meter area. So the higher the GSM , the higher bulkier will be the fabric and vice versa , even they can be of same construction.
Fabric Costruction
Fabric Construction is a term in which some fabric detailing are available such as
(this is necessary to find out 1 meter yarn length because when we take 1 meter in both warp and weft , it’s covered area will be 1m x 1m =1 m2 which is identical to GSM unit that is – Grmas per Square Meter)

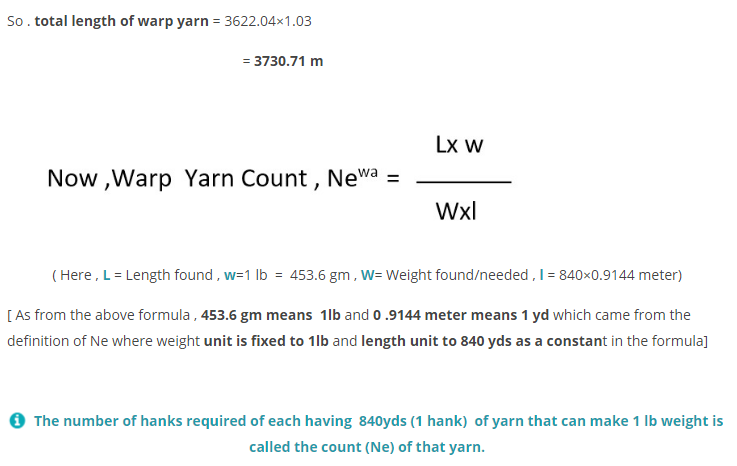

So . total length of warp yarn = 3622.04×1.03
